Gas Heating/Electric Cooling
The MagicPak All-In-One® M-Series MGE gas heating/electric cooling unit features proven engineering and design features all in a smaller footprint, making it the smart choice for specifying heating and cooling for multifamily developments.
- FreezeShield™ system
- IPX (water and dust ingress protection) Rated: IPX1 and IPX4
- Factory wired, charged and tested
- Individually metered and controlled
- Fully ducted system
- Convenient toolless filter access
- Top supply and return ducting
- Evaporator drain float switch
- Antimicrobial plastic evaporator drain pan
- Ventilation capabilities
- 5-year limited warranty on all parts
- 11.7 SEER2 and 95% AFUE
- Heating capacity of 20,000 - 50,000 BTU/HR
- Cooling capacity of 12,000 - 30,000 BTU/HR
- Nominal CFM at 0.5” W.C.
- <1.4% cabinet air leak
Reference Documents

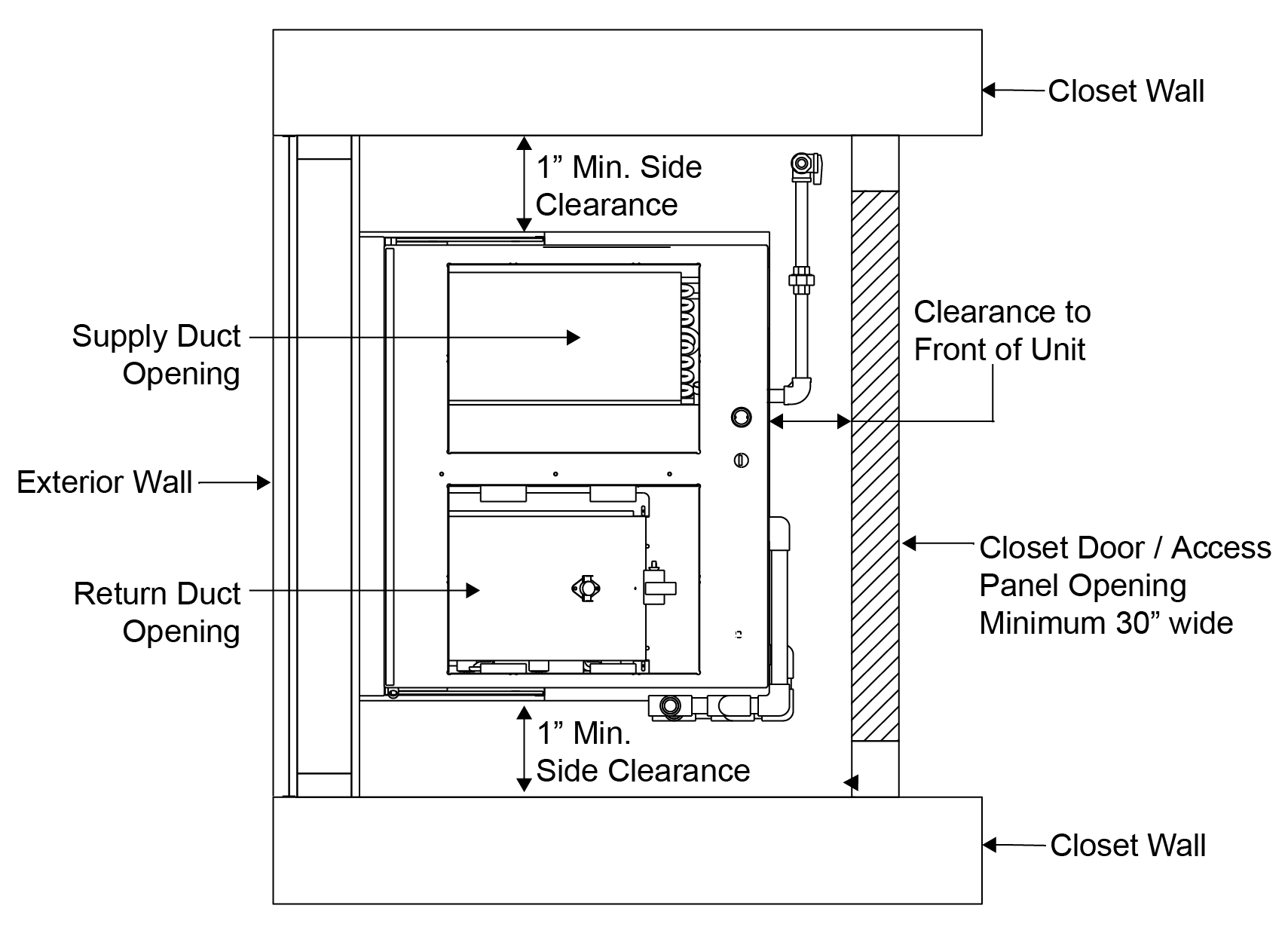

Top View

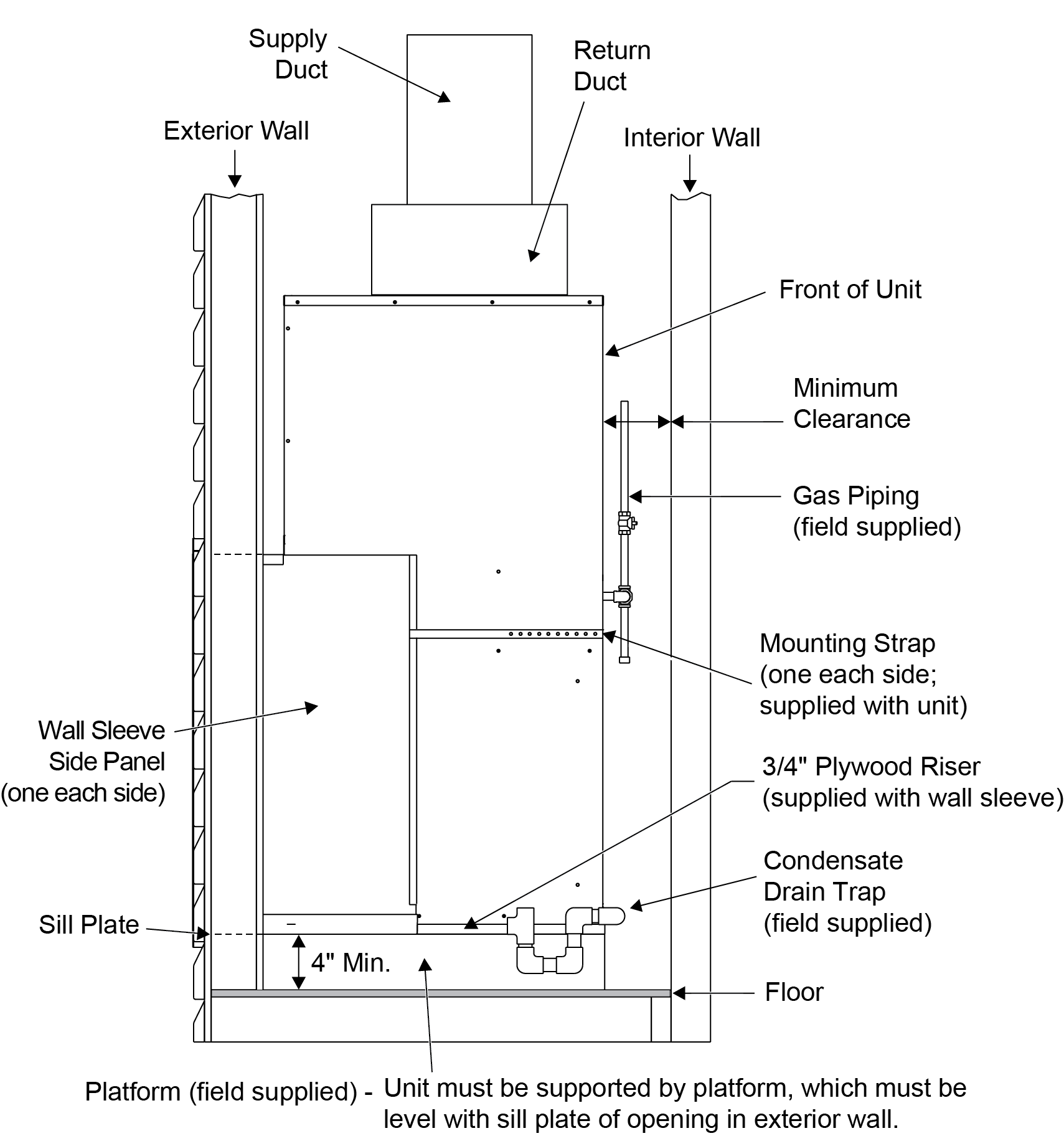

Side View
Find out if MagicPak is the right fit for your project
