Electric Heating/Electric Cooling
The high performance electric heating/electric cooling EWC model MagicPak All-In-One® units feature proven engineering and unique design features that make them the clear choice when specifying heating and cooling for multifamily developments.
- Fully ducted system
- IPX (Ingress Protection) Rated: IPX1 and IPX4
- Factory wired, charged and tested
- Individually metered and controlled
- Antimicrobial plastic evaporator drain pan (we refer to this a different way on M-Series, is there one way that you prefer so we can keep them consistent?)
- Patented Freeze Shield(TM) condensate trap with side or front connection
- Replaceable slide-out cooling chassis
- Louver included with unit
- Standard stainless steel heat exchanger
- 5-year limited warranty on all parts
- 20-year limited parts warranty on stainless steel heat exchanger
- Cooling capacity of 1.0 - 2.5 tons
- Electric heat range of 5 - 15 kW
- Up to 13.0 SEER/12.5 SEER2
Reference Documents
Literature
- V-Series EWC/HWC Product Brochure - R454B
- EWC Up to 13.0 SEER/12.5 SEER2 Installation Instructions - R454B
- EWC Up to 13.0 SEER/12.5 SEER2Technical Specs - R454B
- EWC 11-12 SEER Replacement Chassis Installation - R454B
- EWC 11-12 SEER Replacement Chassis Installation for R410A Cabinet - R454B
- V-Series Refrigerant Detection Kit Installation Instructions - R454B

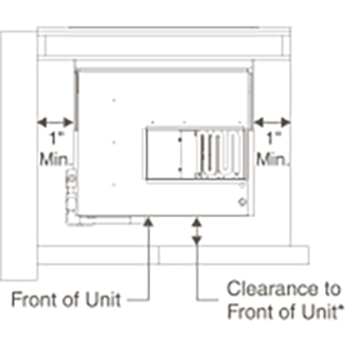

Top view

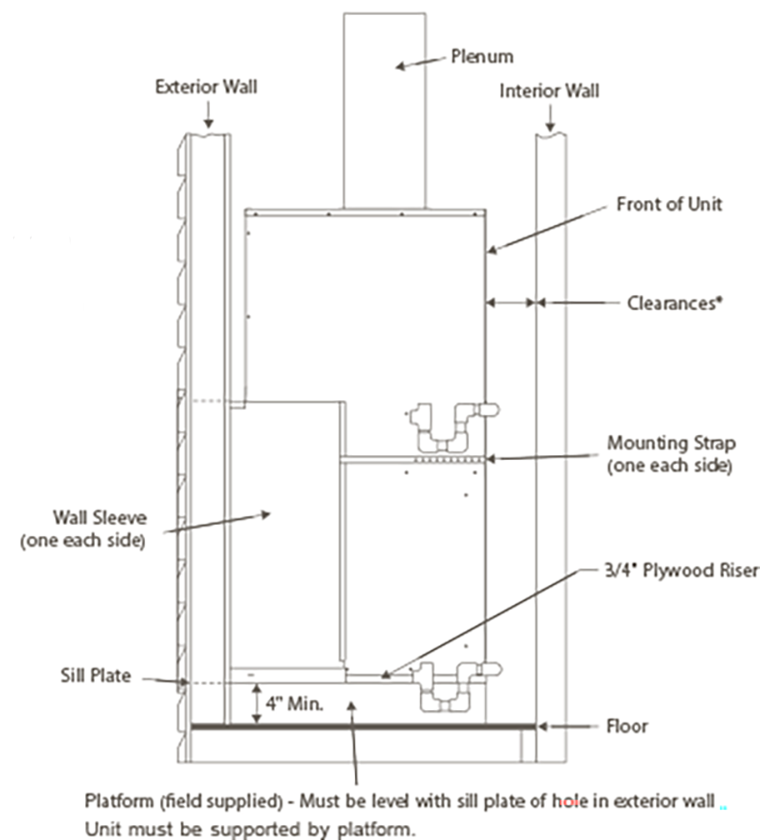

Side View
Find out if MagicPak is the right fit for your project
